Pump is a mechanical device which moves or transfer the fluids from one place to another by mechanical action. It may be driven by electricity, engines. They come in various sizes and various types, starting from microscopic to large industrial pumps.
They mostly operate on the mechanism of reciprocating and rotary. It consumes energy in order to do mechanical work for moving the fluid. They are almost used everywhere such as pumping water from the wells, pond filtering, for operating cooling towers etc.
Types of pumps:
Basically, pumps are divided into two main types and these are
1. Positive displacement pumps

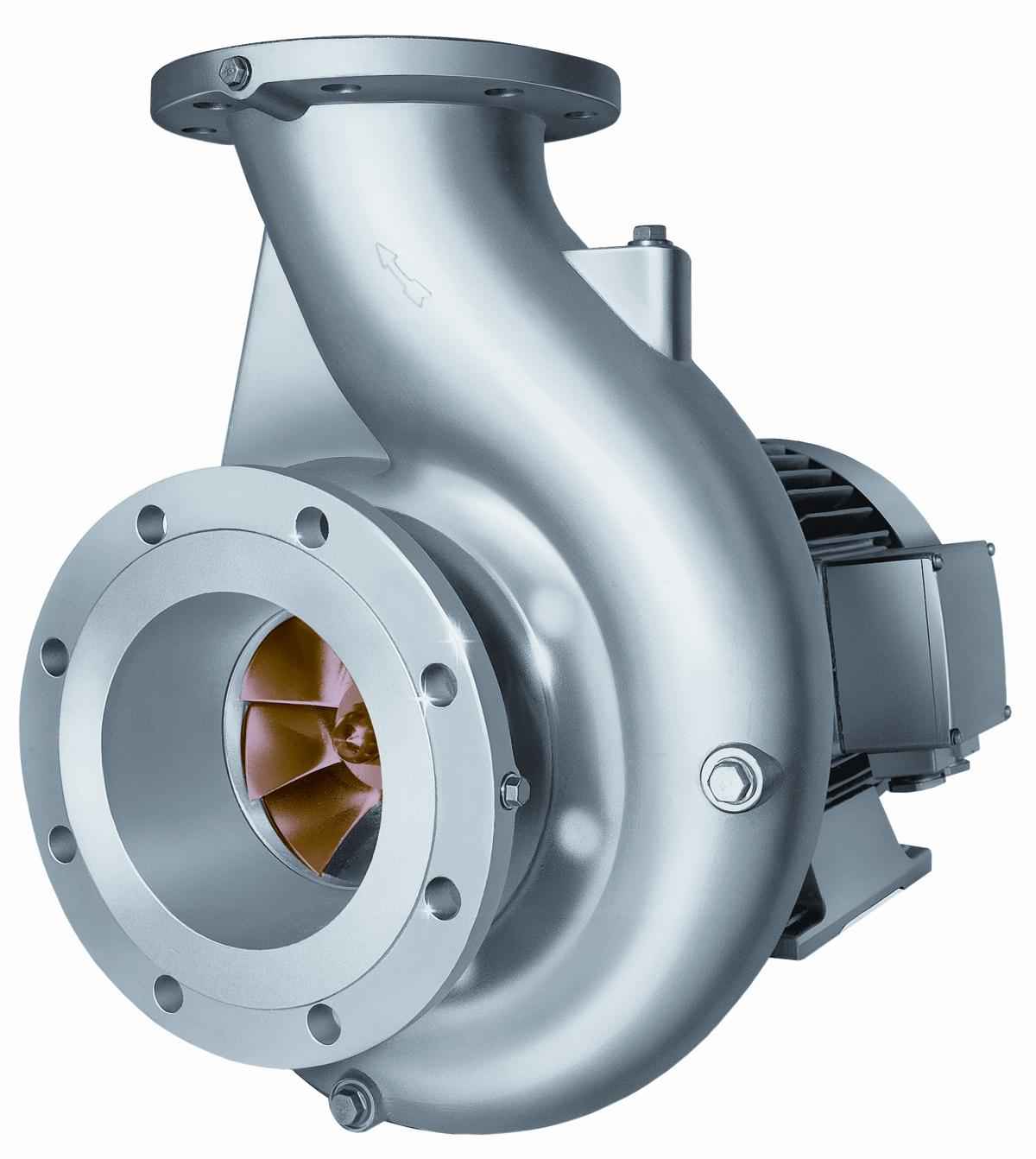

2. Centrifugal pumps
2. Centrifugal pumps
But it can be classified on the basis of different factors
On basis of number of impellers
1. Single stage pump: A pump with one impeller rotating in its casing is called as single stage pump.
2. Double stage pump: A pump with two impellers rotating in its casing is called as double stage pump.
3. Multi-stage pump: When a pump has more than two impellers in its casing than it is called as a multi-stage pump.
Also Read: Why Diesel Engines are More Fuel Economical And What if i Put Petrol into Diesel Engines?
Also Read: Know Here: Why Diesel Engines Are Heavier?
On the basis of methods of displacement of fluid,
1. Positive displacement pumps
2. Impulse pumps
3. Velocity pumps
4. Gravity pumps
5. Valveless pumps
2. Impulse pumps
3. Velocity pumps
4. Gravity pumps
5. Valveless pumps
1. Positive Displacement Pumps:
It is a pump in which fluid is moved by sucking a fixed amount of fluid in a cavity and then forcing this fluid from the cavity to the discharge pipe. Some positive displacement has an expanding cavity at suction side and decreasing cavity at the discharge side. As the cavity expands the fluid enters in the cavity and when the cavity decreases, the fluid forces to the discharge pipe.
Examples of these types of pumps are an internal gear pump, piston pumps, diaphragm pumps, rope pumps etc.
They are also classified as
(i) Rotary Type Positive Displacement: screw pump, internal gear, shuttle block, flexible vane or sliding vane, circumferential piston, flexible impeller, helically twisted roots or liquid ring pumps.
(ii) Reciprocating Type Positive Displacement: plunger pumps, piston pumps and diaphragm pumps.
(iii) Linear Type Positive Displacement: Rope pumps and chain pumps
2. Impulse Pumps
Impulse pump is operated by the pressure created by the gas (usually air ). In some of these pumps what happen, the gas is trapped in the liquid (mostly in water), is released and accumulated somewhere in the pump, this creates pressure that pushes part of liquid upwards. For example: hydraulic ram pumps, pulser pumps and airlift pumps.
3. Velocity Pumps:
In velocity pumps, the kinetic energy is added to the fluid by increasing the flow velocity. This gain in kinetic energy is converted into potential energy (pressure) by decreasing the velocity as the flow exits the pump into the discharge pipe. For example: rotodynamics pumps such as centrifugal pump.
4. Gravity Pumps:
The pump in which the flow of fluid takes place with the help of gravity is called gravity pumps. For example – syphon and heron’s fountain.
5. Valveless Pumps:
It is a pump in which the valves are not present and the flow of water takes place in the absence of valves. For example – impedance pump.
On the basis of types of flow
1. Axial Flow Pumps: It is a pump in which the flow of water takes place axially (i.e. parallel to the axis of rotation)
2. Radial Flow Pumps: In these types of pumps the flow of fluid takes place in radial direction i.e. at right angles to the axis of rotation.
3. Mixed Flow Pumps: In these pumps, the fluid enters axially and comes out radially or vice versa. It is a combination of axial and radial flow pumps.
